Ruler Tools 2.0

RulerTools is available for download only, after the order you will recieve in 5 days the link to download it via internet.

RulerTools must be activated on your Cinema4D serial number, so after the order you have to sent us first 11 digit of Cinema4D serial number. You can send it directly with a screenshot going toC4D menu > Help -> Personalize and send all toinfo@c4dzone.com with order number.

Features:

Horizontal/Vertical Rulers

Rulers are an essential part for the generation and orientation of helplines. Helplines are created intuitively by dragging them out of the rulers.

Horizontal, Vertical and Angular Help lines

You cannot only generate horizontal and vertical helplines, you can also rotate any of them and create angular help lines for extented flexibility.

Snapping

The RulerTool allows you to snap objects, points (Polygons and Splines), polygons, edges and spline tangents to help lines and intersections of help lines.


Snapping Preview
All RulerTool operations have a snapping preview for improved handling of snap operations. The snaping distance can be set arbitrarily.


Interactivity
Interactive handling of the most general functions such as creating, deleting, rotating, moving and deactivating of help lines offers fast editing control.

Lines Manager

Lines are conveniently managed in a lines tree view list. Numerical editing of line properties such as position and rotation angle for full control.

Multiple Selection and Folders
Multiselection of lines and folders allow for better overview of your help lines.

Locking

All lines can be locked from any further modification.

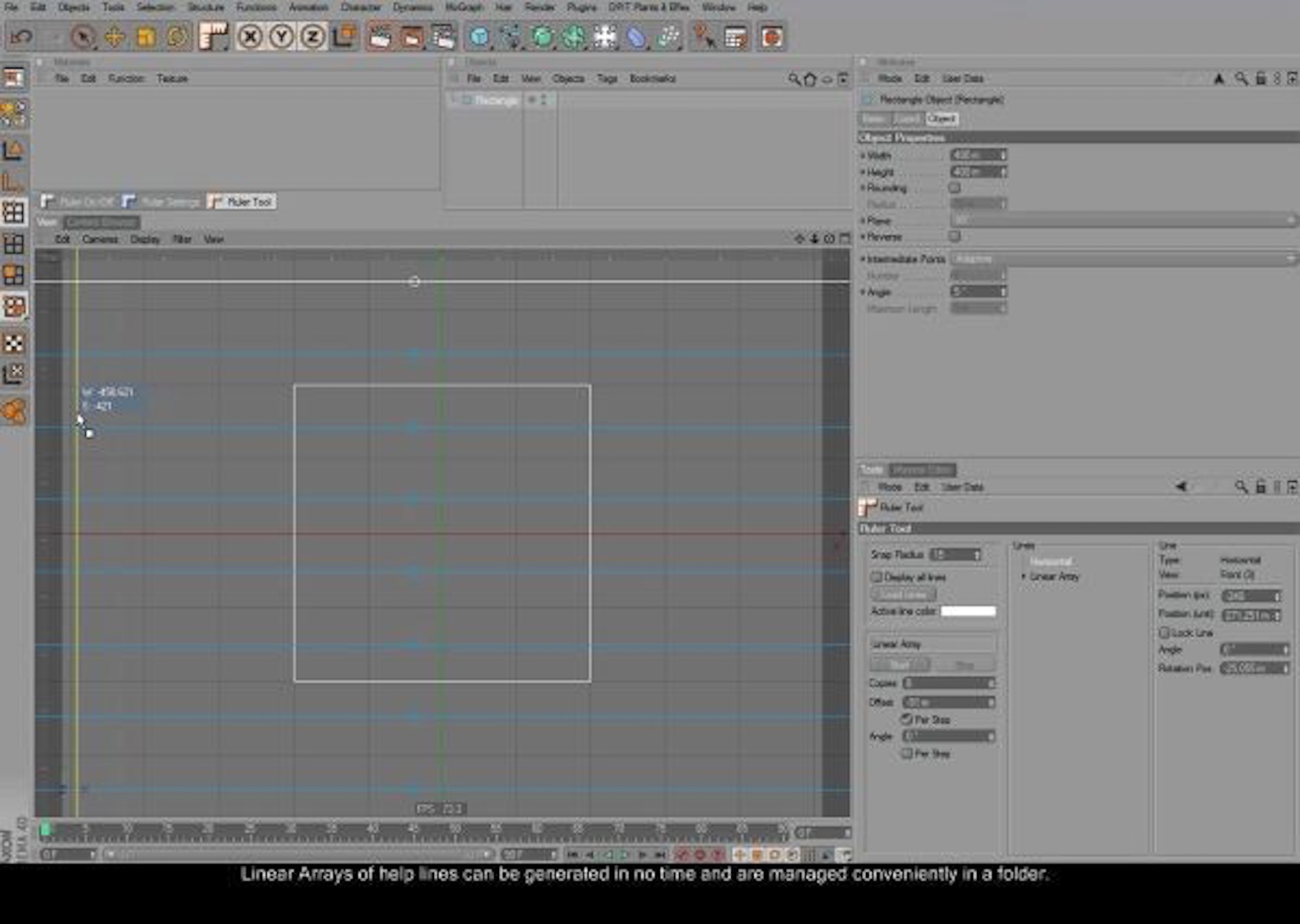

Linear Array

The linear array operation allows you to quickly generate multiple help lines with a single click.

Per document storage

Help lines are stored per document.

Per View Handling

Help lines are furthermore displayed and handled for each individual view.

Spline Conversion

Help lines can be converted to splines from any view. This allows you to use help lines also with Cinema 4D's own snapping tools or to work with the splines.

Quick Button

Rulers, Help lines and Safe frames can be de-/activated individually with a single button.

Safe frames
Cinema 4D users know the safe frames option in the perspective view. RulerTools also offers you safe frames inside of the orthogonal views!

Customizable
Colors and dimensions of elements are fully user-definable via the RulerSettings dialog.

Help lines
Merging Help lines can be loaded and merged from other scene files.

Techincal specifications:

For OSX: Cinema4D 10.x or higher
For Win: Cinema4D 10.x or higher

RulerTools is english language based so if you need assistance for installing or solving problems into your Cinema4D you can use the official DPIT support team forum (http://www.dpit2.de/community/) or into our C4Dzone forum.
